Free Flat Cone Calculator Pattern Printable At K Zell Metals we offer a calculator for sheet metal flat cone templates that shows you how to manually layout a single cone gore section Try today PHOENIX AZ CALL TODAY 602 232 5882 View the Cone Instructions below to learn how to manually layout the flat pattern for a truncated cone in single or multiple gore sections It allows
Cone Calculator is helpful for Generating Flat Pattern Layout or Fabrication Layout of all types of cones This Calculator gives a complete solution to all types of Cones Fabrication Layout You Can save the Cost of Material by using this calculator You can Save Time on your Fabrication Layouting process A cone optionally with the top cut off In that case it s called a frustum Can be used to help create the geometry for a beaker vase party hat or lamp shade If you d like a real cone just use 0 zero for the Top Diameter Do not score or fold the glue flap in this template to keep the geometry at the seam smooth
Free Flat Cone Calculator Pattern Printable
Free Flat Cone Calculator Pattern Printable

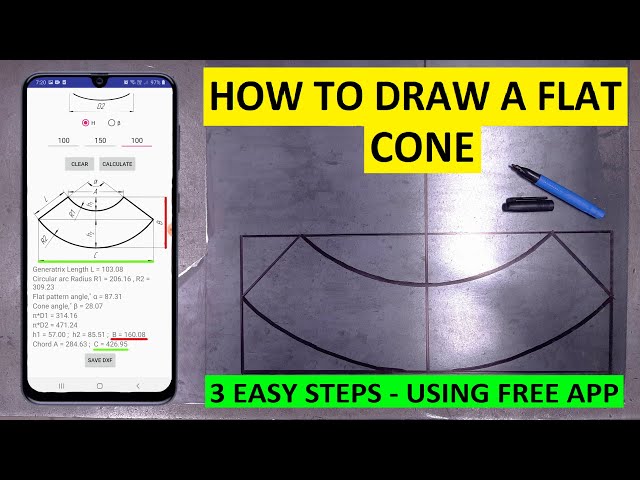

How to Draw a Flat Pattern Truncated Cone in 3 EASY STEPS with FREE APP! - YouTube
meggiecat: Cone Calculator
Overlap Normally the flat pattern dimensions are are exact and dont have any extra material for overlapping the edges If you want extra material on the edges of the cone then add here The material is added evenly along the edge If you enter 0 5 for overlap the shape of the original will be produced on the screen with the addition of red lines offset from each edge by 0 25 Flat Top Cone Calculator Calculates the measurements for the pattern to construct a flat top cone Length A mm Length B mm Length C mm Arc Angle degrees Radius R1 mm Radius R2 mm Join my newsletter to keep updated
3 Draw straight lines from each end of A to the corresponding end of B but carry the lines through until they meet What you are doing is drawing the cone triangle from which the frustum is derived 4 Put the pointy end of your compass at the tip of the cone and draw an arc outwards from one end of A Cone Calculator Instructions Pick a unit to be used for all three dimensions Pick a paper size you can mix and match paper and units Enter the two diameters of your cone section One of them can be 0 It does not matter which one is the big one the program will do the right thing Enter the height and click calculate
